REAL 6200 Series

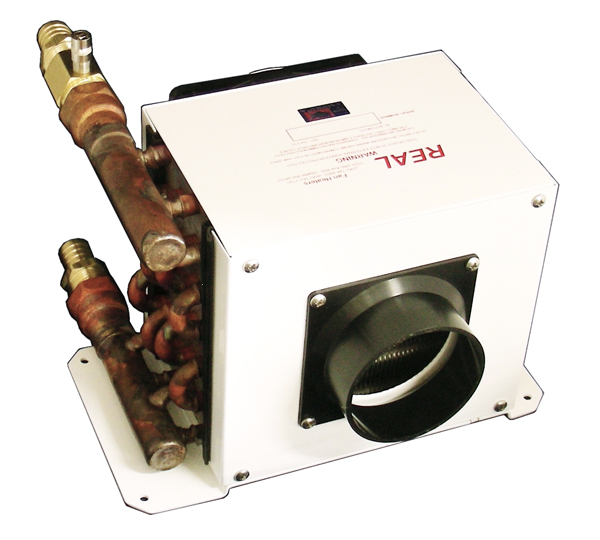

REAL6213
REAL 6213
The REAL 6213 10,250 Btu Marine Hydronic Fan Heater provides a 3-inch outlet which is designed to duct airflow to adjacent spaces or to accommodate tight installations. This kit includes five feet of 3-inch duct and one 3-inch grille with clamps.

Dimensions: Height* 6-11/16″ x Width 9-15/16″ x Depth* 8-3/8″
Amp Draw: .36 @ 12 Volts
Max. BTU: 10,250 btu
Airflow: 103 cfm
Shipping Weight: 9 lbs
*Bleeder fitting adds 2-3/8″ to depth and 1/2″ to height.

Available in 12 or 24 Volts. An air bleed fitting is included with each unit. 3/4” hose barbs are standard. Other hoses sizes as well as Pex or Wirsbo fittings are available.

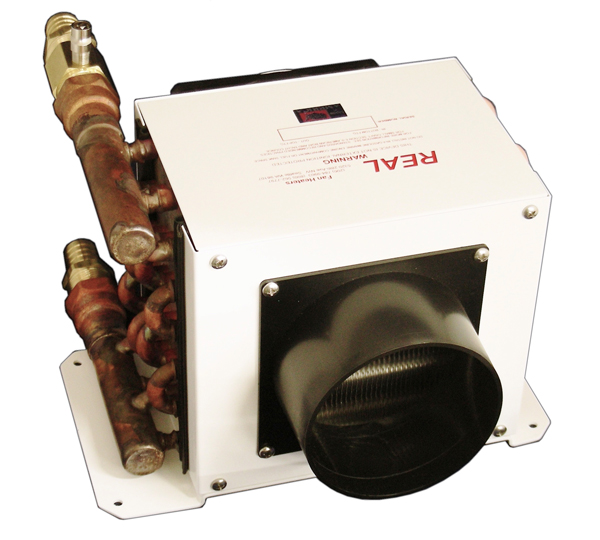

REAL6214
REAL 6214
The REAL 6214 10,250 Btu Marine Hydronic Fan Heater is a 4-inch outlet heater designed to provide a greater airflow to adjacent spaces and to ease space concerns. This kit includes four feet of 4-inch duct and one 4-inch grille with clamps.

Dimensions: Height* 6-11/16″ x Width 9-15/16″ x Depth* 9″
Amp Draw: .36 @ 12 Volts
Max. BTU: 10,250 btu
Airflow: 103 cfm
Shipping Weight: 9 lbs
*Bleeder fitting adds 2-3/8″ to depth and 1/2″ to height.

Available in 12 or 24 Volts. An air bleed fitting is included with each unit. 3/4” hose barbs are standard. Other hoses sizes as well as Pex or Wirsbo fittings are available.

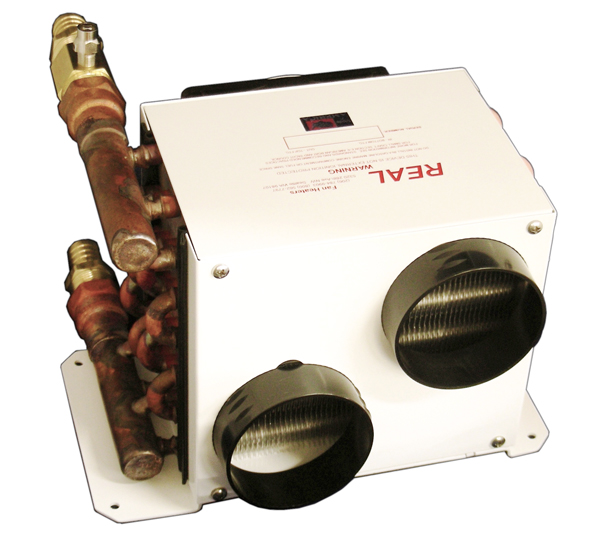

REAL6223
REAL 6223
The REAL 6223 10,250 Btu Marine Hydronic Fan Heater is a dual outlet heater with two 3-inch outlets designed to split the airflow to separate spaces or windows. This kit includes six feet of 3-
inch duct and two 3-inch grilles with clamps.

Available in 12 or 24 Volts. An air bleed fitting is included with each unit. 3/4” hose barbs are standard. Other hoses sizes as well as Pex or Wirsbo fittings are available.

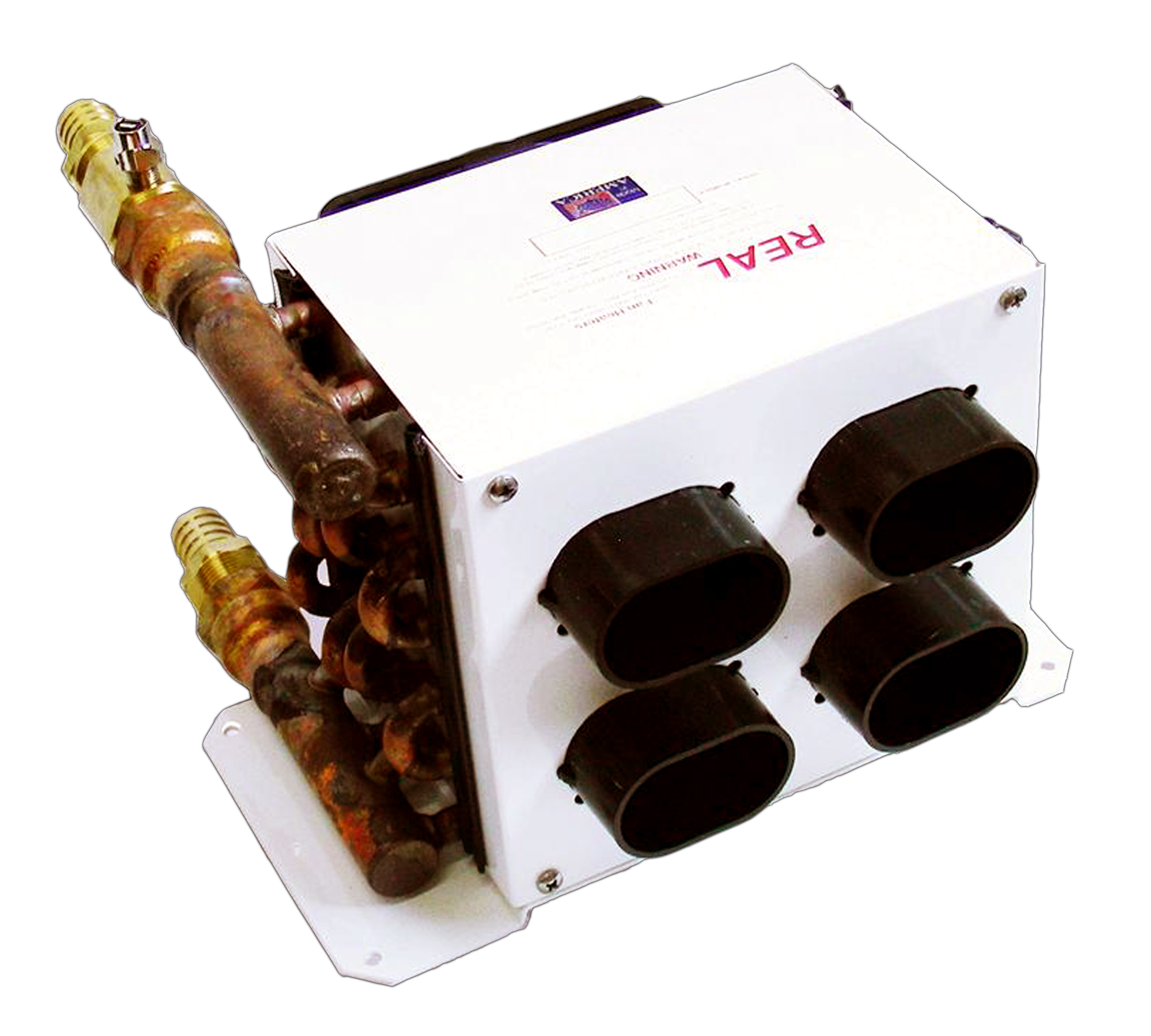

REAL6242
REAL 6242
The REAL 6242 10,250 Btu Marine Hydronic Fan Heater is a quad outlet heater with four 2-inch outlets designed to split the airflow to separate spaces or windows. This kit includes twelve feet of 2-inch duct and four 2-inch grilles with clamps.
Dimensions: Height* 6-11/16″ x Width 9-15/16″ x Depth* 8-3/8″
Amp Draw: .36 @ 12 Volts
Max. BTU: 10,250 btu
Airflow: 103 cfm
Shipping Weight:
9 lbs
*Bleeder fitting adds 2-3/8″ to depth and 1/2″ to height.

Available in 12 or 24 Volts. An air bleed fitting is included with each unit. 3/4” hose barbs are standard. Other hoses sizes as well as Pex or Wirsbo fittings are available.
