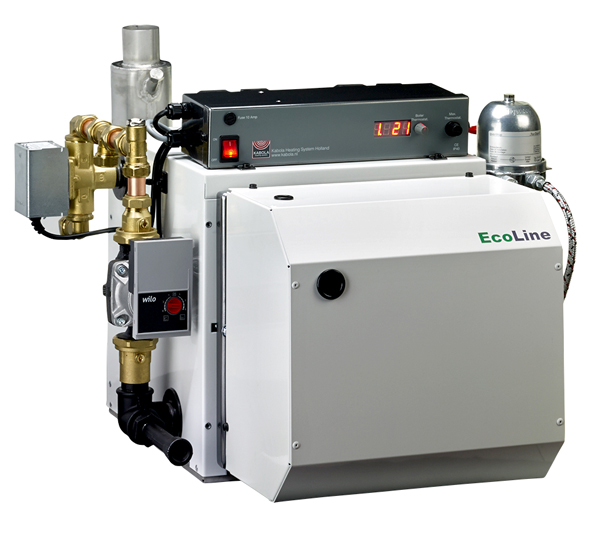

Kabola KB Series
BTU- 27,300 – 130,000
The KB Series is the only blue flame, zero soot and low-carbon emission marine boiler on the market.
| UNIT | KB 20 | KB 40 | KB 45 | KB 50 | KB 75 | |
|---|---|---|---|---|---|---|
| CAPACITY BTU | BTU | 27,300 | 44,300 | 81,800 | 95,500 | 129,600 |
| EFFICIENCY | % | 92 | 93 | 93 | 94 | 94 |
| EXHAUST TEMP MAX | F | 338-428 | 302-410 | 293-401 | 293-392 | 284-374 |
| EXHAUST OUTLET DIAMETER | MM | 50 | 50 | 50 | 80 | 80 |
| FUEL CONSUMPTION | GAL/HR | — | — | — | — | — |
| POWER DRAW | W | 154 | 182 | 196 | 197 | 199 |
| WEIGHT | LBS | 144 | 165 | 176 | 199 | 254 |
| FUEL | #2 DIESEL | #2 DIESEL | #2 DIESEL | #2 DIESEL | #2 DIESEL |
| KB 20 | KB 40 | KB 45 | KB 50 | KB 75 | |
|---|---|---|---|---|---|
| A | 10 3/8 | 15 5/8 | 16 1/2 | 18 3/4 | 29 1/2 |
| B | 8 3/8 | 8 3/8 | 8 3/8 | 8 3/8 | 8 3/8 |
| C | 14 | 14 5/8 | 14 5/8 | 14 5/8 | 17 |
| D | 11 1/2 | 11 7/8 | 12 1/2 | 13 3/4 | 16 1/8 |
| E | 14 1/8 | 14 5/8 | 15 3/4 | 15 3/4 | 19 3/8 |
| F | 13 1/2 | 13 1/2 | 13 1/2 | 13 1/2 | 13 1/2 |
| G | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 | 5 1/2 |
| H | 3 | 3 | 3 | 3 | 3 |
| I | – | – | – | – | – |
