BTU 34,000- 68,000

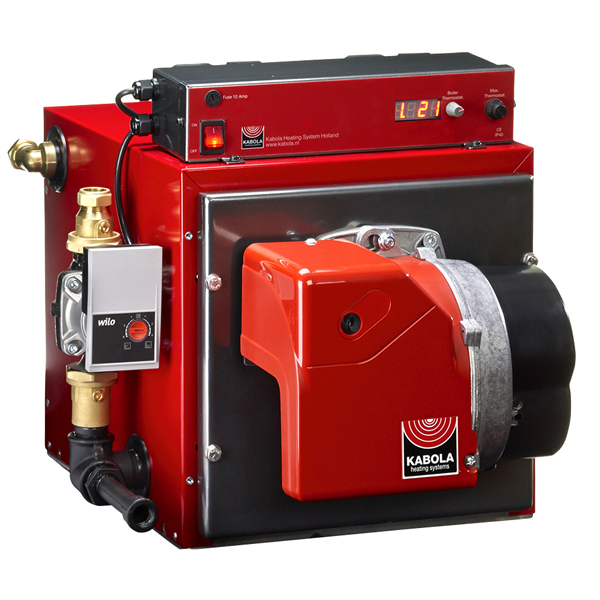

The HR Series brings in one package high efficiency, compact design, reliability and quiet operation on board today’s finest vessels.
| UNIT | HR 300 | HR 400 | HR 500 | |
|---|---|---|---|---|
| CAPACITY BTU | BTU | 34,100 | 47,700 | 68,200 |
| EFFICIENCY | % | 90 | 90 | 90 |
| EXHAUST TEMP MAX | F | 446 | 446 | 446 |
| EXHAUST OUTLET DIAMETER | MM | 80 | 80 | 80 |
| FUEL CONSUMPTION | GAL/HR | 0.3 | 0.4 | 0.5 |
| POWER DRAW | W | 240 | 240 | 240 |
| WEIGHT | LBS | 134 | 154 | 179 |
| FUEL | #2 DIESEL | #2 DIESEL | #2 DIESEL |

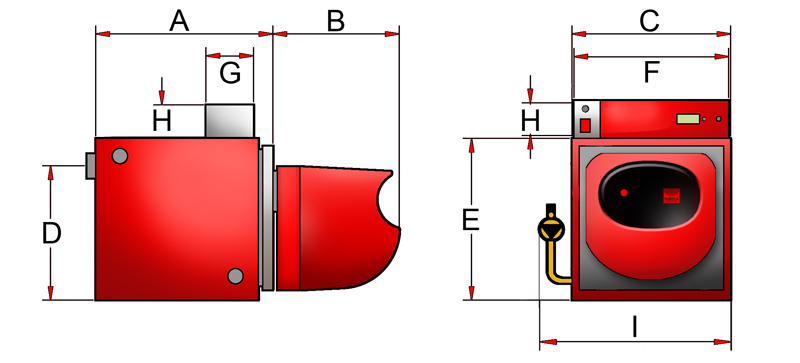

| HR 300 | HR 400 | HR 500 | |
|---|---|---|---|
| A | 15 | 18 3/32 | 19 15/16 |
| B | 13 | 13 | 13 |
| C | 14 | 14 19/32 | 14 9/32 |
| D | 11 11/16 | 11 11/16 | 12 |
| E | 14 3/16 | 15 13/32 | 18 3/8 |
| F | 13 9/16 | 13 9/16 | 13 9/16 |
| G | 5 1/2 | 5 1/2 | 5 1/2 |
| H | 2 15/16 | 2 15/16 | 2 15/16 |
| I | – | – | – |
